Olist E-Commerce ELT Pipeline

1. Dataset Background

Olist is a Brazilian e-commerce marketplace that connects small businesses to major marketplaces, enabling them to sell their products online across Brazil.

This dataset includes 100,000+ orders placed between 2016 and 2018 with details including:

• Seller performance
• Customer profiles
• Product details
• Order timelines (purchase, payment, shipping)
• Reviews and ratings
• Geolocation (states and cities)
• Marketing channel performance

In this project, the focus is on seller dynamics to derive actionable insights.

2. Project Overview

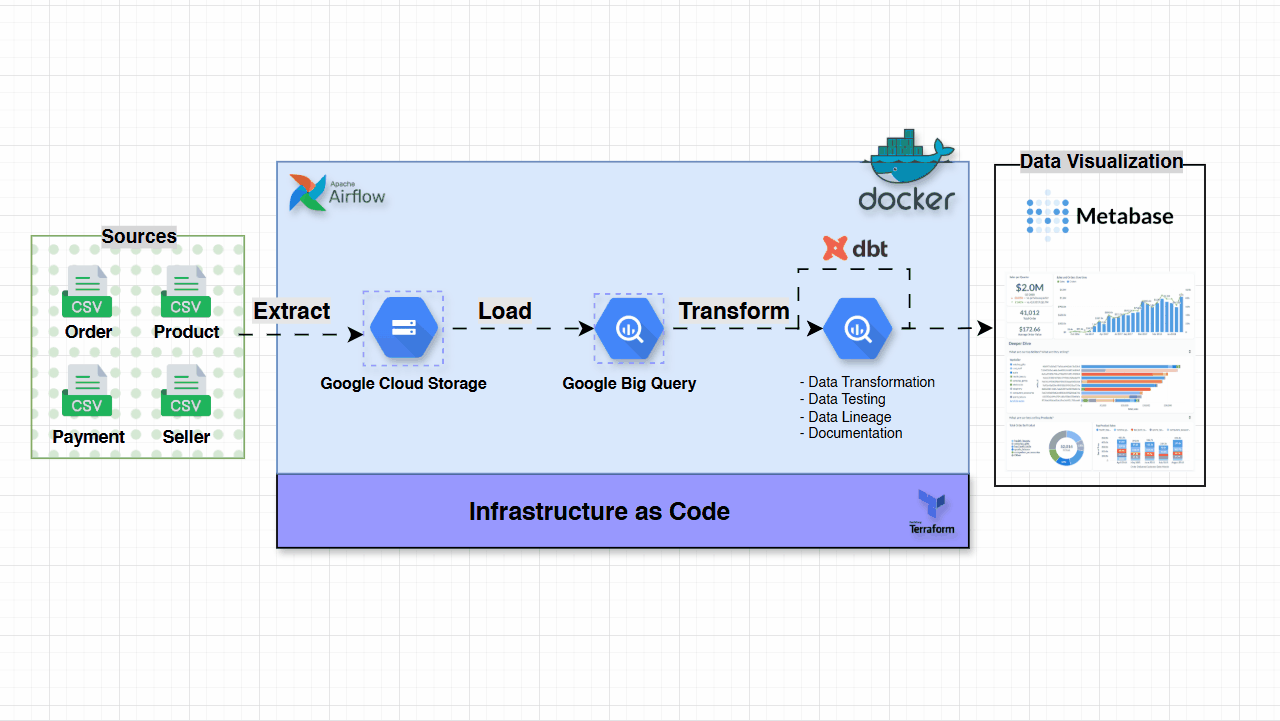

This project builds a complete ELT pipeline:

• Extract: Raw CSV files are stored in Google Cloud Storage.
• Load: Airflow DAGs load them into BigQuery staging tables.
• Transform: dbt turns staging data into analytics-ready marts.
• Visualize: Metabase connects to BigQuery for dashboarding.

The infrastructure is managed with Docker and Terraform.

3. Getting Started

3.1 Clone Repository

git clone https://github.com/fachry-isl/olist-ecom-elt-pipeline.git

3.2 Cloud Service Provisioning

Google Application Credential

Follow this guide to create your credentials.

Save your credentials file to: ~/.google/credentials/google_credentials.json

Then set in variables.tf:

variable "credentials"{
  description = "The path to the service account key file"
  default     = "~/.google/credentials/google_credentials.json"
}

variable "project" {
  description = "Project"
  default     = "gcp-refresh-2025"
}

Terraform Apply

cd terraform
terraform apply

3.3 Setup Environment Variables

Edit docker-compose.yaml or create .env file:

GOOGLE_APPLICATION_CREDENTIALS=/.google/credentials/google_credentials.json
GCP_PROJECT_ID=gcp-refresh-2025
GCP_GCS_BUCKET=gcp-refresh-2025-olist-ecom
BIGQUERY_DATASET=olist_ecom_all

3.4 Build & Run Docker Container

docker-compose up --build

4. Tools Setup and Preview

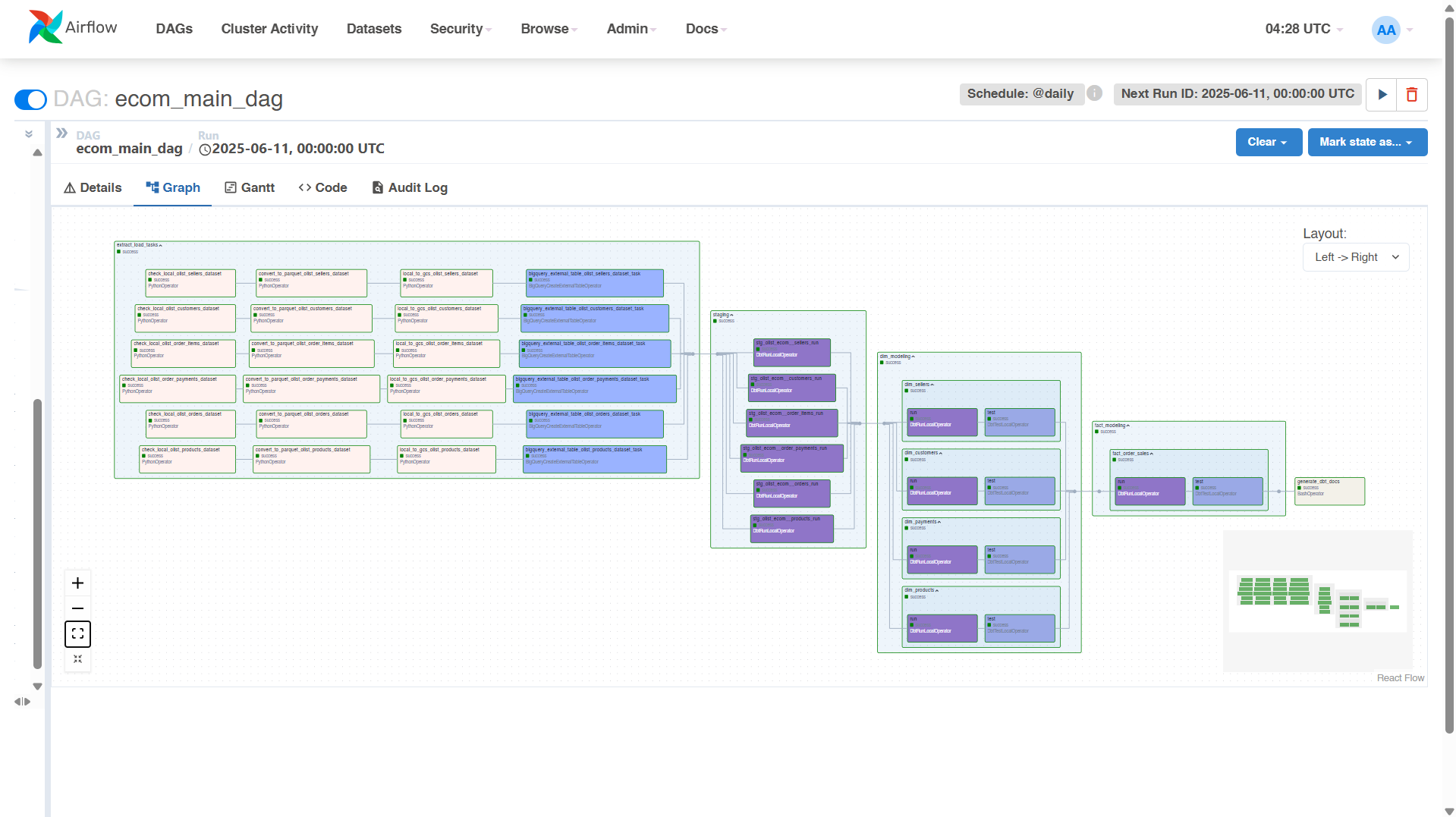

4.1 Airflow for ELT Pipeline

Airflow orchestrates:

• Extract from CSV to GCS
• Load from GCS to BigQuery staging
• Transform with DBT

4.2 DBT with Cosmos in Airflow

DBT is used for transformations using star schema modeling.

• Fact and Dimension modeling
• Data quality checks (e.g. not null, unique)
• Documentation autogenerated

Cosmos integrates DBT inside Airflow DAGs.

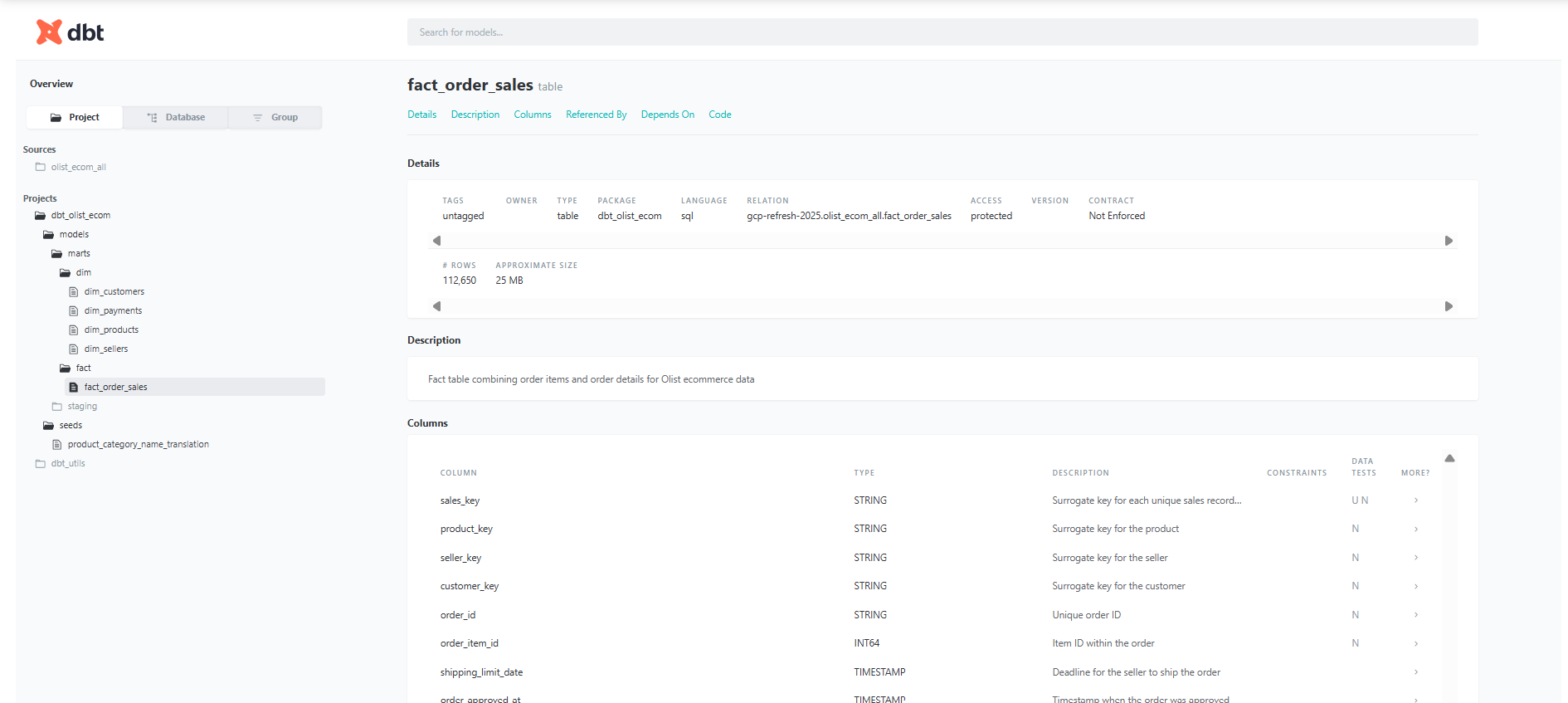

You can access DBT docs from Airflow UI /dbt_docs.

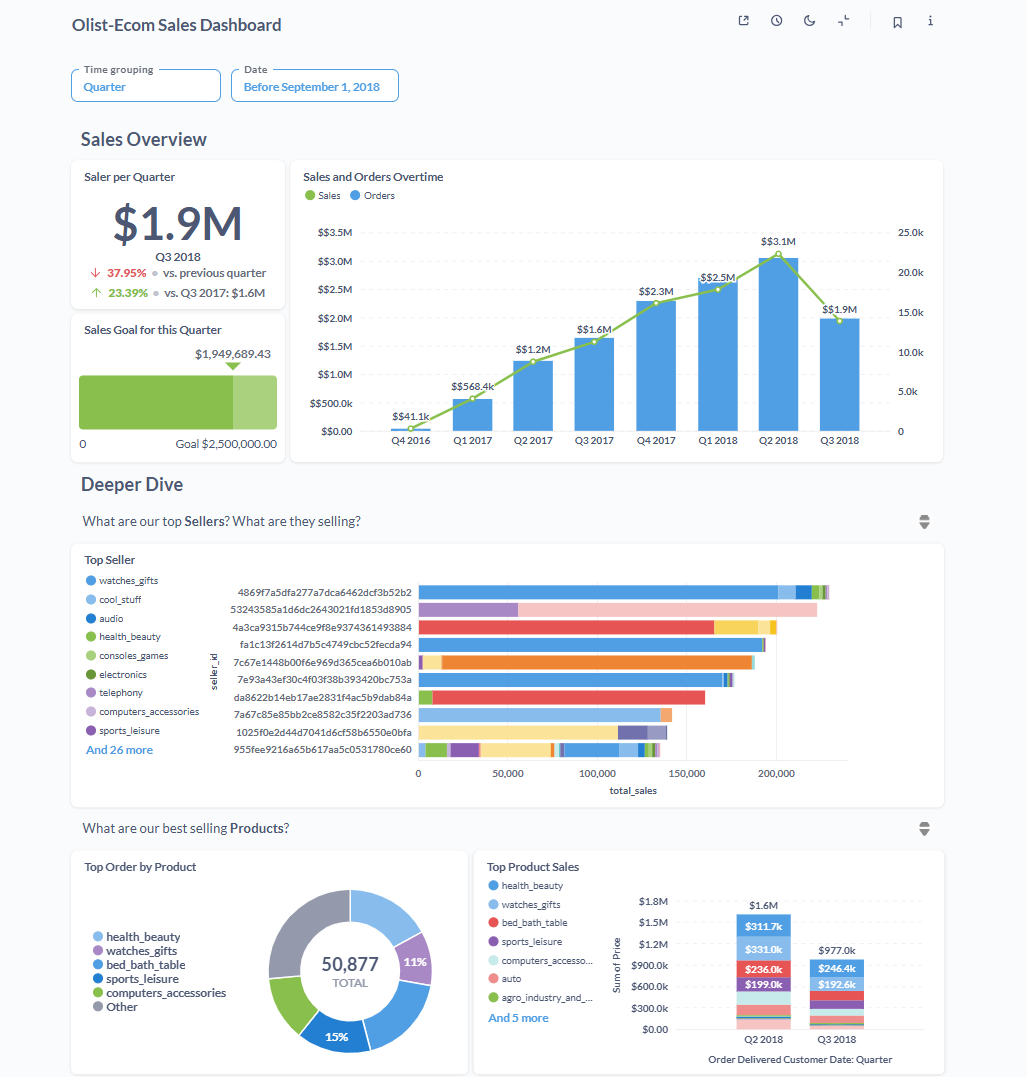

4.3 Metabase for Visualization

Metabase connects to the final marts in BigQuery to build dashboards.

5. Key Insights

📊 Sales Performance Q3 2018

• Total Sales: $1.9M (↓ 37.95% QoQ, ↓ 23.39% YoY)
• Target Achievement: ~78% of $2.5M target
• Sales Trend: Peaked at $3.1M in Q2 2018, dipped in Q3

🛍️ Top Sellers & Categories

• Leading Categories: watches_gifts, cool_stuff, audio
• Consistent Sellers: Strong contributors to Q2/Q3 sales

📦 Product-Level Insights

• Most Ordered: Health & Beauty – 15% of all orders (50k+)
• Revenue Drops:
  • watches_gifts: $311k → $192k
  • bed_bath_table, sports_leisure also down

6. Summary

• End-to-end ELT pipeline deployed using Terraform, Docker, Airflow, DBT, and Metabase.
• Olist E-commerce dataset used to analyze seller and product dynamics.
• Key focus: identifying sales trends, seller performance, and product insights.

7. Recommendations

• Analyze seasonality to anticipate sales dips.
• Revisit underperforming categories post-Q2.
• Use seller/product insights to optimize listings.

---

Project by Fachry Ikhsal · 2025
